| Place of Origin: | China |
| Hàng hiệu: | Automatic Laboratory Machine for pulp molding product |
| Chứng nhận: | CE |
| Model Number: | GYF5030 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Giá bán: | có thể đàm phán |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 60days |
| Payment Terms: | L/C, T/T, Western Union |
| Model: | GYF5030 | Mold plate size: | 500*300mm |
|---|---|---|---|
| Capacity: | 1.5~3kg per hour | Workshop Recommend: | ~100m2 |
| Type of Raw Material: | Virgin pulp | Material consumption: | 1.6-3.3kg per hour |
| Electricity consumption heat by electricity: | 12~22kw |
If you want to manufacturie tableware products but don't want to invest a lot at the beginning, you can buy a laboratory machine to test the demand for your tableware products.

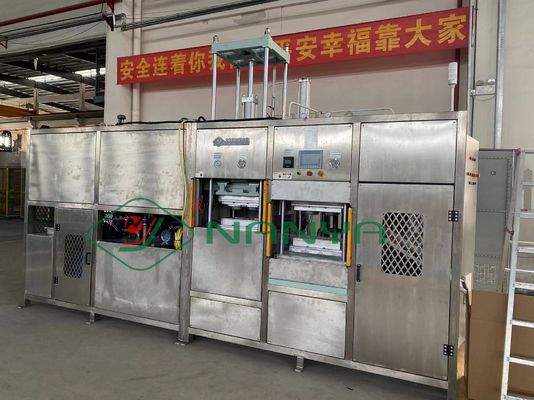

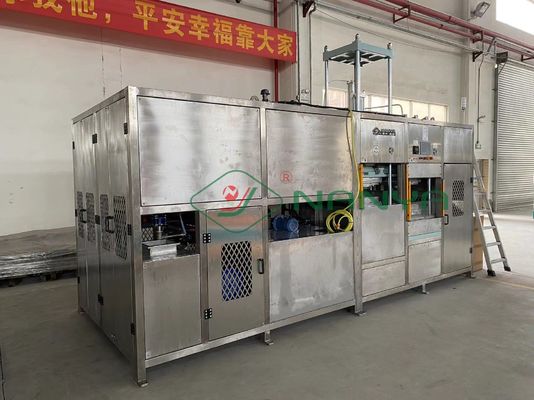

Laboratory machine for paper pulp molded products testing
Brief introduction:
1. Integrative pulp molding Laboratory Machine is a combined machine independently developed by NANYA. Pulp molding process use virgin pulp or waste paper as raw materials, after hydraulic pulp, mixing, using vacuum pulp adsorption on the product mold to form wet products, and then drying, hot pressing, get biodegradable products.
2. The machine is integrated with pulp, forming, drying/pressing process and supporting vacuum and compressed air equipment, one machine to achieve pulp mold production. Compact structure, small floor space, simple and convenient operation, it is an ideal equipment for sample making, laboratory and teaching.
3. The machine adopts PLC+ touch screen man-machine interface for operation and control. All parameters can be set and displayed through the man-machine interface.
It aims to simulate the key process flow of Pulp Molding Production Lines, providing efficient and accurate experimental data and small-batch sample preparation capabilities for universities, research institutes, enterprise R&D centers and quality inspection departments.
Specifications for main machine
| Model | GYF5030 |
| Dimension | ~4830×2100×2660mm |
| Structure |
Pulping Section with Forming Section with Hot-pressing Section All in one Automatic Type Forming |
| Platen Size | 500*300 mm |
| Finished Product | Maximum product dimensions 400mm*250mm*70mm. |
| Power | 20 KW installed (~12 KWH consumption) |
| Controlling | PLC with HMI |

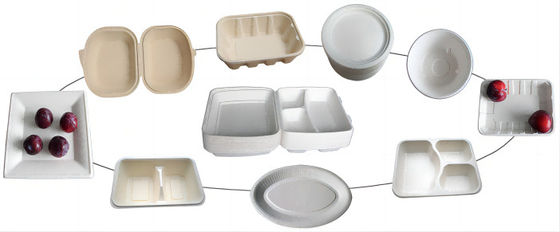

Application:
|
Tableware products |
 |
|
Small high-end industrial inner cushion packaging |
|
